High Purity Graphite felt Tech.

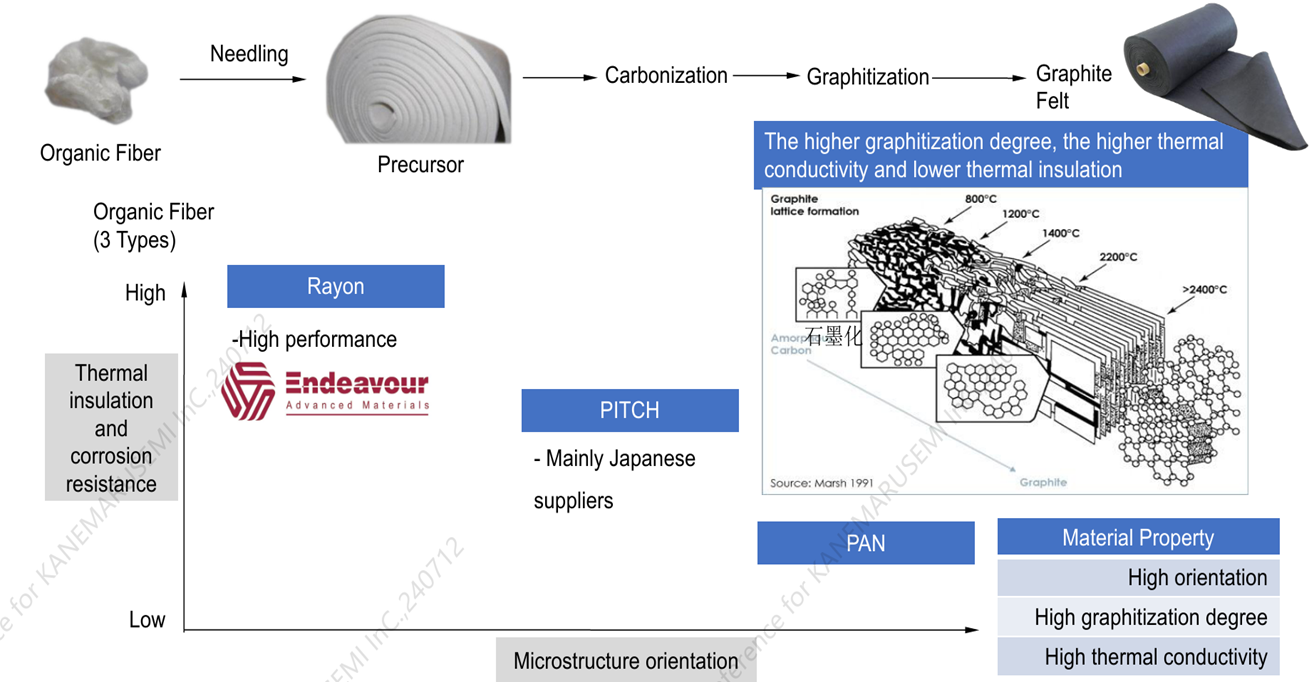

Carbon based insulation is made from organic fiber precursor through needling process, carbonized and graphitized (sometimes purified). It is to be used in vacuum or international gas protected environment.
Typical Properties

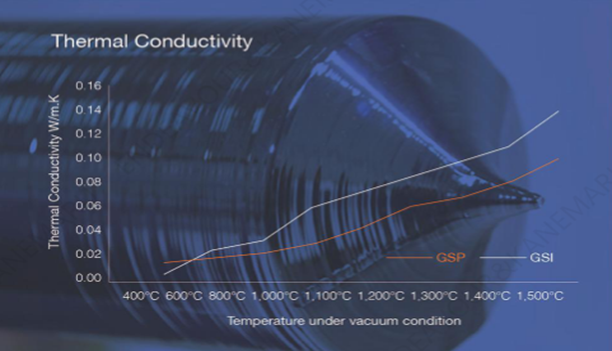

| Item | Unit | GSP | GSI |
|---|---|---|---|
| Density | g/cm2 | 0.085 | 0.08-0.1 |
| Carbon | % | ≥99% | ≥99% |
| Thickness | mm | 5 & 10 | 5 & 10 |
| Width | mm | 1,200-1,400 | 1,200-1,400 |
| Length | M | 10-18 | 10-18 |
| Impurity | ppm | ≤200 | ≤600 |
| Max Temp | C | 2,500 inert gas atmosphere | |

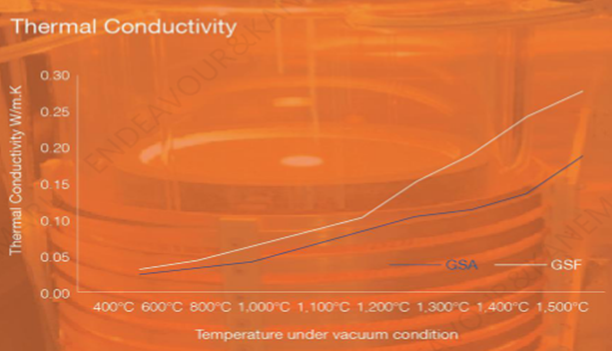

Typical Properties
| Item | Unit | GSA | GSF | GSFN |
|---|---|---|---|---|
| Density | g/cm2 | 0.085 | 0.08-0.1 | 0.08-0.1 |
| Carbon | % | ≥99% | ≥99% | ≥99% |
| Thickness | mm | 5/11.5 | 5/10 | 5/10/11.5 |
| Width | mm | 1,200-1,400 | 1,200-1,400 | 1,200-1,400 |
| Length | M | 10-18 | 10-18 | 10-18 |
| Impurity | ppm | ≤20 | ≤50 | ≤20, N<10ppm |
| Max Temp | C | 2,600 inert gas atmosphere | ||

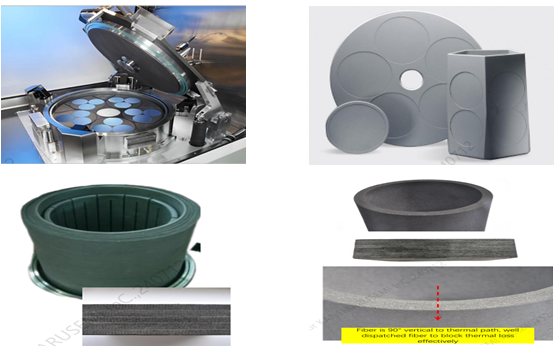

Typical Properties

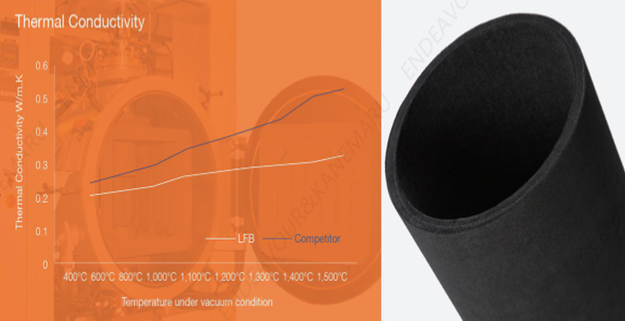

| Item | Unit | LFB | LFC |
|---|---|---|---|
| Density | g/cm2 | 0.14-0.19 | 0.14-0.19 |
| Carbon | % | ≥99% | ≥99% |
| Flexural Strength | MPa | 0.3+ | 0.3+ |
| Thickness | mm | 40-300 | 20 |
| Width | mm | 1,200-1,400 | X |
| Length | mm | 1,500 | X |
| Diameter | mm | X | Optional |
| Height | mm | X | 1,400 |
| Impurity | ppm | ≤50, ≤20, Optional | |
| Surface treatment | Carbon Cloth, Graphite Foil, Graphite Paint | ||
| Max Temp | C | 2,600 inert gas atmosphere | |
Typical Properties

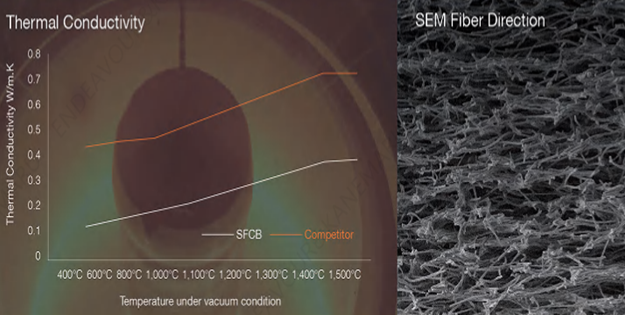

| Item | Unit | SFCB | SFCC |
|---|---|---|---|
| Density | g/cm2 | 0.13-0.25 | 0.14-0.25 |
| Carbon | % | ≥99% | ≥99% |
| Flexural Strength | MPa | 0.3+ | 0.3+ |
| Compression Strength | MPa | 0.8+ | 0.8+ |
| Thickness | mm | 250 | ≤70 |
| Width | mm | 1,200-1,400 | X |
| Length | mm | 1500 | X |
| Diameter | mm | X | ≤1,650 |
| Height | mm | X | ≤1,200 |
| Impurity | ppm | ≤50, ≤20, Optional | |
| Electrical resistivity-XY | ohm.cm | 0.15 | |
| Electrical resistivity-Z | ohm.cm | 0.85 | |
| Surface treatment | Carbon Cloth, Graphite Foil, Graphite Paint | ||
| Max Temp | C | 2,600 inert gas atmosphere | |

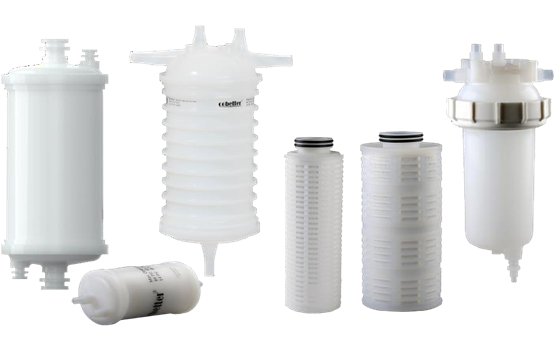

Continuous innovation in filtration and purification technology,
